XHGK Bolt-Adjustable Turning Roller

Model	Max. Loading (t)	Working Range (mm)	Roller Sizes (D*W) (mm)		Motor Power (kw)	Roller Linear Speed (m/h)
			Rubber	Metallic
XHGK5	5	￠250-2800	￠250 × 100	￠240 × 20	0.37 × 2	6-60 VFD
XHGK10	10	￠250-4000	￠300 × 120	￠290 × 38	0.55 × 2
XHGK20	20	￠250-4200	￠350 × 120	￠340 × 45	1.1 × 2
XHGK40	40	￠600-4500	￠400 × 120	￠390 × 60	1.5 × 2
XHGK60	60	￠700-5000	￠450 × 120	￠440 × 70	1.5 × 2
XHGK80	80	￠700-5500	￠500 × 120	￠494 × 80	2.2 × 2
XHGK100	100	￠700-6500	￠550 × 120	￠540 × 100	2.2 × 2
XHGK160	160	￠1000-6000		￠620 × 220	4.0 × 2
XHGK250	250	￠1000-7500		￠700 × 360	5.5 × 2
XHGK400	400	￠1000-7500		￠800 × 300	5.5 × 2
XHGK500	500	￠1000-8000		￠800 × 300	7.5 × 2
XHGK630	630	￠1000-8500		￠850 × 350	11 × 2
XHGK800	800	￠1500-9000		￠900 × 350	15 × 2
XHGK1000	1000	￠1500-10000		￠950 × 350	15 × 2

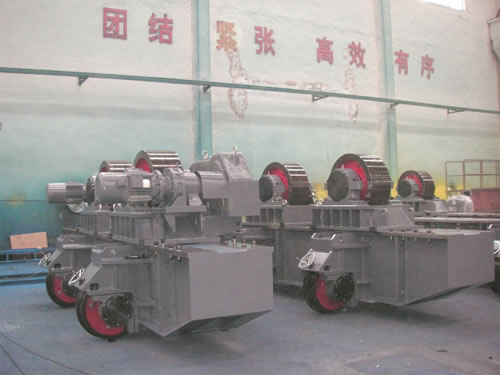

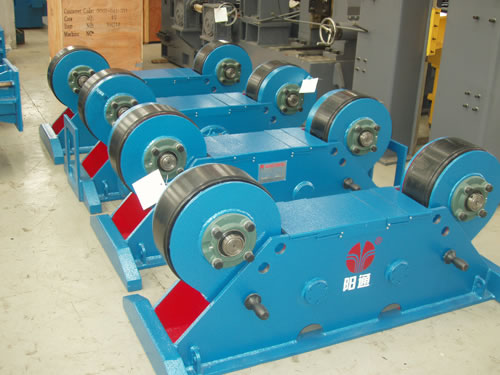

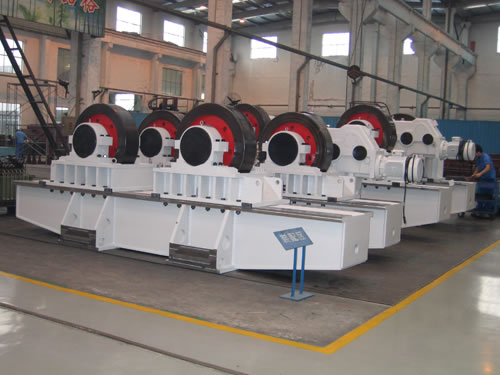

As a professional turning roll manufacturer in China, we offer self-alignment turning roller, bolt-adjustable turning roller, screw- adjustable turning roller and anti-drifting turning roller for customers. This welding machine can fulfill the purpose of reducing labor intensity and guaranteeing welding quality. Our bolt-adjustable turning roll features stepless speed adjustment and low noise transmission.
