THB Head and Tail Stock Type Welding Positioner

Parameters of Head and Tail Stock Positioner

Model	THB10	THB20	THB30	THB50	THB100	THB200	THB300	THB500	THB1000
Rated Lloading (kg)	1000	2000	3000	5000	10000	20000	30000	50000	100000
Rotating Speed (rpm)	1.5	1.5	1.5	1.5	1	1	1	0.5	0.5
Speed Control Way	Constant Speed/ 10 times Speed Adjustment
Max. Eccentricity (mm)	200	200	200	200	150	150	150	100	100
Worktable Diameter (mm)	800	800	800	800	1000	1000	1000	1500	1500
Rotating Center Height (mm)	800	800	800	800	1000	1000	1000	1200	1200

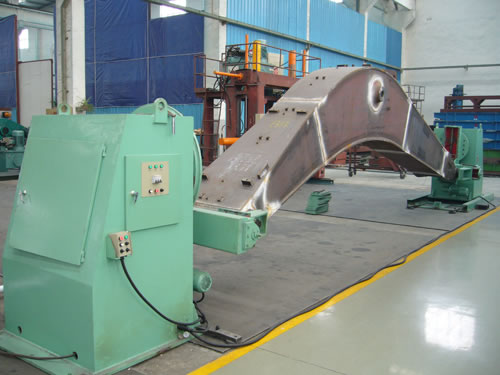

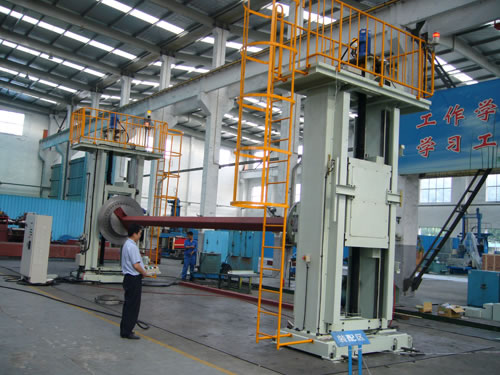

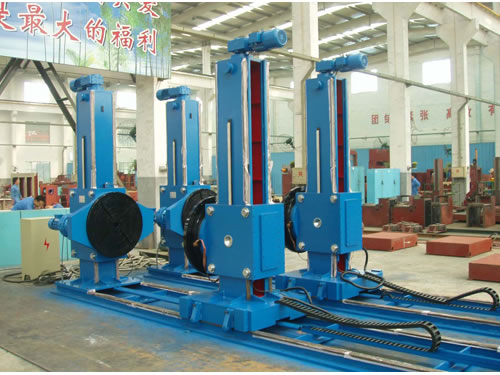

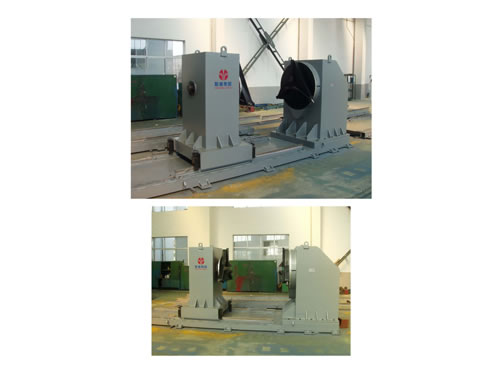

Founded in August 1985, Wuxi Yangtong Mechanical Equipment Co., Ltd. is a professional welder positioner manufacturer and supplier in China. Besides head and tail stock positioners, we mainly provide CNC strip cutting machine, plasma cutter, beam welding line, H-beam assembling machine, straightening machine, cantilever welding machine, welding production line, milling machine, welding manipulator, turning roll as well as other welding equipment. The head and tail stock positioners clamp both ends of the long work-piece and makes it rotate and lift through electric motor. This welding equipment runs at a constant speed. The worktable diameter is from 800 mm to 1,500 mm. The welder positioners are available with rated loading capacities of 1,000 to 100,000 kg.
