Features
1. This milling machinery can mill the straight side of the work-piece. Within the range from -45° to 0° , the bevel at any angle can be adjusted by manual.
2. The fixed upper press-beam edge milling machine has high temperature tempering treatment after welding and gets rid of the stress effectively. This treatment can make the lather steady without any distortion and ensure long service life and good precision.
3. This milling machinery can be equipped with domestic or Taiwan brand milling head.
4. The rail is planed into shape with qualitative carbon steel, and then through surface hardening and fine grinding, which can ensure rail precision and abrasion-proof performance.
5. Rail is combination of hanging type and horizontal type. Compared with ordinary hanging type, it boosts stability, reduces vibration during milling and decrease the noise effectively.
6. Compared to beveling machine, the processing surface of this fixed upper press-beam edge milling machinery has high precision.
7. There is stock stop device mounted on the side of the lathe in order to position the work piece accurately.
8. The up and down rails adopt two-stage protection, which can prevent the scrap iron from damaging the guide surface.
Description

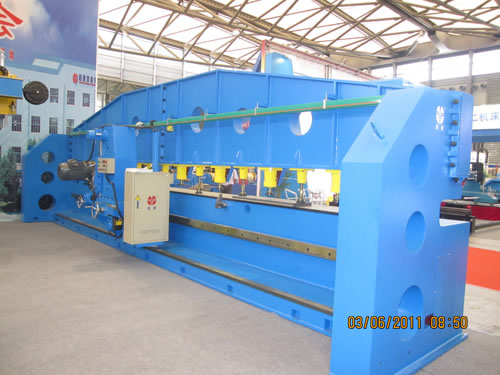

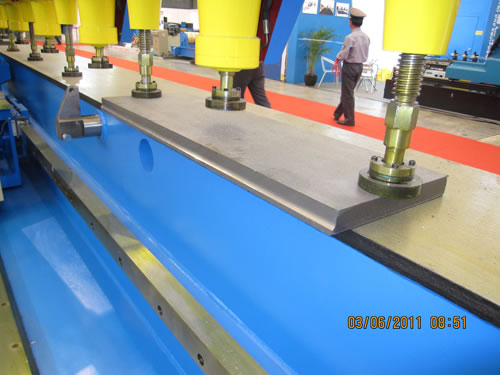

This milling machinery is a kind of advanced high-efficient milling equipment for processing groove of the plats before welding. The fixed upper press-beam edge milling machines consist of machine bed, stationary press beam, milling part, hydraulic pump station and electric control system.
This milling machinery can be widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery. There are single head, double head, standard facer and forming facer for choose.
Main Technical Parameter of Fixed Upper Press-Beam Edge Milling Machine
|
Model
|
XBJ6
|
XBJ9
|
XBJ12
|
XBJ15
|
XBJ18
|
|
Suitable Plate Length (m)
|
6
|
9
|
12
|
15
|
18
|
|
Distance between Hold-Down and Bed (mm)
|
80
|
|
Plate Thickness (mm)
|
6-50
|
|
Milling Angle(°)
|
0-45 (The milling angle of this milling machinery can be altered.)
|
|
Milling Head Model
|
TX-32A or TX-40A
|
|
Power and Revolving Speed of Milling Head
|
5.5Kw,1440r/min or 7.5Kw,1440r/min
|
|
Spindle Speed (r/min)
|
125-630
|
|
Milling Speed (m/min)
|
0.13-1
|
|
Fast forward and Fast Return Speed (m/min)
|
3.5
|
|
Hydraulic Pressure (mpa)
|
≤3.5
|
Packaging and Transportation
Main frame of this fixed upper press-beam edge milling machine is packed in nude, electric control box packed in plywood case
Founded in August 1985, Wuxi Yangtong Mechanical Equipment Co., Ltd. is a professional manufacturer and supplier of milling machinery in China. Besides fixed upper press-beam edge milling machine, we also have movable upper press-beam edge milling machine for sale. We offer free lifting and colligation service when the milling machine leaves the factory, responsible for directing and training operators and provide the quick-wear parts timely. Our cutting machines, milling machinery as well as welding equipment are very popular among customers both at home and abroad.
