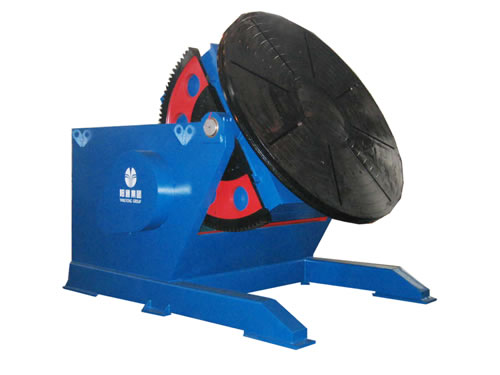

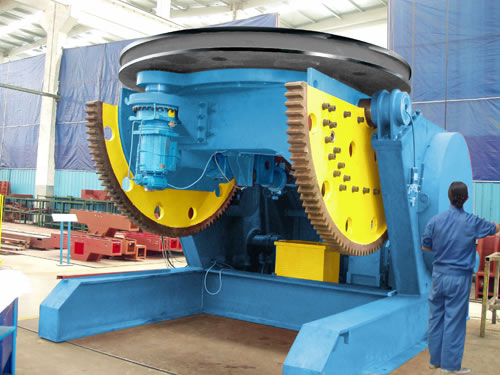

HB/ZHB Welding Positioner

Parameters of HB Welding Positioner

Model	HB3	HB6	HB12	HB20	HB30	HB50	HB80	HB100	HB150	HB200	HB300	HB500
Rated Loading (kg)	300	600	1200	2000	3000	5000	8000	10000	15000	20000	30000	50000
Rotating Speed (rpm)	0.2-2	0.1-1.1	0.1-1.1	0.09-0.9	0.08-0.8	0.07-0.7	0.06-0.6	0.06-0.6	0.05-0.5	0.05-0.5	0.04-0.4	0.04-0.4
Tilt Speed (rpm)	≈0.9	≈0.8	≈0.5	≈0.4	≈0.3	≈0.15	≈0.15	≈0.14	≈0.14	≈0.14	≈0.1	≈0.1
Worktable Diameter (mm)	￠600	￠800	￠1000	￠1200	￠1400	￠1600	￠2000	￠2000	￠2200	￠2500	￠3000	￠4000
Max. Eccentricity (mm)	150	150	200	250	250	250	200	200	200	200	200	200
Max. Gravity Center Distance (mm)	200	250	250	300	400	400	400	630	630	630	630	800
Worktable Tilting Angle	0-120°
Rotating Motor Power (Kw)	0.37	0.37	0.75	1.1	1.5	2.2	2.2	3	4	5.5	7.5	11
Tilting Motor Power (Kw)	0.37	0.55	1.1	1.5	2.2	3	4	4	5.5	7.5	11	18.5
Rotating Diameter at 90° (mm)	≤1000	≤1500	≤1570	≤1900	≤2300	≤2600	≤3000	≤3100	≤3400	≤3400	≤4200	≤5700
Speed Control Way	VFD

Yangtong Mechanical Equipment Co., Ltd. is a specialized welding positioners manufacturer from China. Our HB welding positioner uses the power overturning and rotation to make the work-piece at the correct position. The working table can tilt for certain angle and revolve unlimitedly at any titling angle. The HB welding positioner can be used for pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure. Our welding positioners are popular due to high quality and durability. Our company is engaged in offering superior quality welding machines to the customers.
