Movable Upper Press-Beam Edge Milling Machine

Features

1.The edge milling machine with four or five sets of milling units can be controlled and operated separately.
2.This milling equipment can be used for milling single side or two sides
3.The plate edge milling machine has greatly enhanced milling efficiency and achieved good linearity and parallelism.
4.YXBJ movable upper press-beam edge milling machine can shear the straighten side and 0-45° bevel (adjusted by manual)
5.This milling equipment adopts two-stage protection system for its guide rail.
6.There is manual lubricant pump on the milling moving unit, and it can drop lube to two sets of rails, in order to ensure the lubrication oil on the rail surface.
7.The hydraulic control system of this plate edge milling machine adopts independent pump station, also with fine filter, to guarantee the solenoid valve for long and reliable operation.

Description

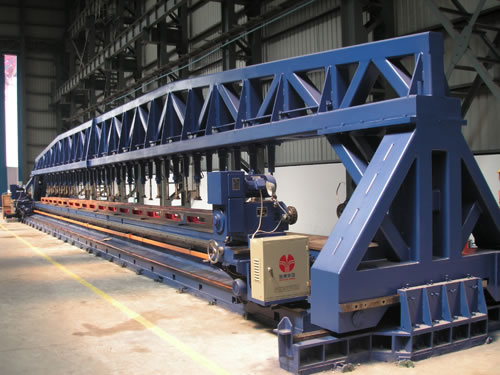

This moveable upper press-beam edge milling machine is synchronized two-side or triple-side milling equipment with high efficiency. The press beam can move backward wholly from the worktable, easy for loading and unloading of work-piece.
The plate edge milling machine consists of machine bed, movable press beam, milling part, hydraulic pump station and electric control system. This milling equipment is widely used in milling of U-type stiffer, or batch production of work-piece with large length and width.

Parameter of Movable Upper Press-Beam Edge Milling Machine


Model YXBJ-15 YXBJ-18 YXBJ-20 YXBJ-23
Suitable Plate Length (m) 15 18 20 23
Plate Thickness (m) 6-160
Plate Width (m) 400-1000
Milling Head Model TX32A or TX40A
Milling Motor Power (Kw) 5.5Kw,1440r/min or 7.5Kw,1440r/min
Transverse Feeding Stroke of Milling Head (mm) 400
Milling Speed (m/min) 0.1-1
Fast forward and Fast Return Speed (m/min) 5
Press Way Hydraulic or Pneumatic Pressing

Packaging and Transportation

Main frame of this edge milling machine is packed in nude, electric control box packed in plywood case
Yangtong is a professional manufacturer and supplier of edge milling machine in China. Till now, our company owns two hundred sets of processing equipment, Mitsubishi pentahedron machining center, the Italian Baima 8 × 24 m CNC floor type boring and milling machine, CNC gantry plate edge milling machine, planer, 1000T CNC bending machine and 2.2 m steel plate pretreatment line. Our milling equipment sells well all over the country, and we have exported our edge milling machines to the United States, Canada, Russia, Italy, Australia, New Zealand, Japan, India, Singapore, Malaysia, Indonesia, Iran, UAE and Brazil.
