Features
1.This automatic welding machine is easy to control with one-button drive system, and its frame moving and welder can work at same time.
2.For BOX beam welding, this welding equipment adopts pneumatic tracking device, which can ensure the accurate relative position between the welding nozzle and welding seam and guarantee the welding quality.
3.This automatic welding machine features advanced and reasonable structure. It takes travel unit as its frame. Its rigidity and strength is calculated carefully.
4.The travel motor uses variable frequency speed control system to guarantee the traveling speed be the same as welding speed.
5.All main parts are de-stressed post welding, guaranteeing this automatic welding machine run safely and reliably. With long service life.
6.Main elements of this automatic welding equipment adopt international famous brand.
Description

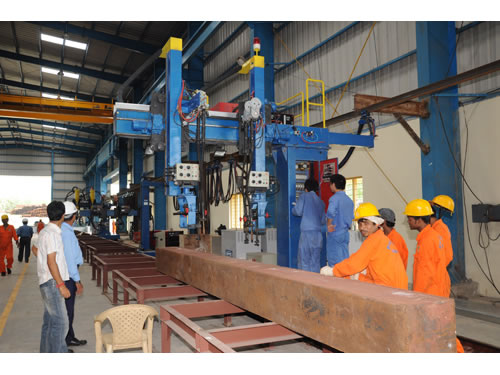

The automatic welding machine is composed of trolley, column, beam, welding arm, welding-gun mechanical tracing unit, flux recovery and disposal system, pneumatic system, electric system and SAW machine.
This welding equipment can be classified into gantry type and cantilever type. Welding process can adopt single wire, twin-wire or tri-wire. Our automatic welding machine finishes automatic box-beam SAW welding after finishing ESW, which is characterized by high efficiency, stable and reliable quality, digital display of welding speed and variable frequency adjustable.
Parameters
|
Model
|
LHF12
|
LHF15
|
|
Suitable Work-Piece Sizes (mm)
|
300-1200
|
300-1500
|
|
Suitable Work-Piece Length (mm)
|
4000-15000
|
|
Welding Speed (m/min)
|
0.24-2.4
|
|
Gas Source Pressure (MPa)
|
0.4-0.8
|
|
Rail Span of Trolley (mm)
|
1400
|
Packaging and Transportation
1.The main engine of this automatic welding machine can be packed in nude, and its electric cabinet and welding power can be packed in plywood case.
2.This welding equipment can be transported by motor or by sea.
As a professional welding equipment manufacturer and supplier in China, Wuxi Yangtong mainly provides automatic welding machine, cutting machine, H-beam production line, box-beam welding line, assembling machine, welding manipulator, welding positioner as well as other welding machine for users. Our automatic welding machines are very popular in USA, Canada, Russia, Italy, Australia, New Zealand, Japan, India, Singapore, Malaysia, Indonesia, Iran, UAE and Brazil.
